Basingstoke, U.K – With DrillOptimizer, the motion control specialist Aerotech is expanding its Automation1-iSMC control solution with a powerful feature for highly dynamic laser drilling with galvo scanners. The programme, which has been specially developed for drilling large quantities of vias, noticeably reduces cycle times when drilling several million holes – while at the same time ensuring consistently high processing quality. DrillOptimizer is part of the AeroScriptPlus library and is available both as a user-friendly interface in Automation1 Studio and as a .NET DLL, which enables seamless integration into existing machine HMIs.
“The optimization of point-to-point movements for complex drilling patterns has long been a bottleneck. DrillOptimizer automates these steps, reduces process time and ensures maximum precision,” explains Bryan Germann, Product Manager at Aerotech.
Intelligent motion logic for demanding drilling applications
DrillOptimizer is part of the AeroScriptPlus functionality and uses a two-stage optimisation approach that takes into account both path planning and movement parameters:

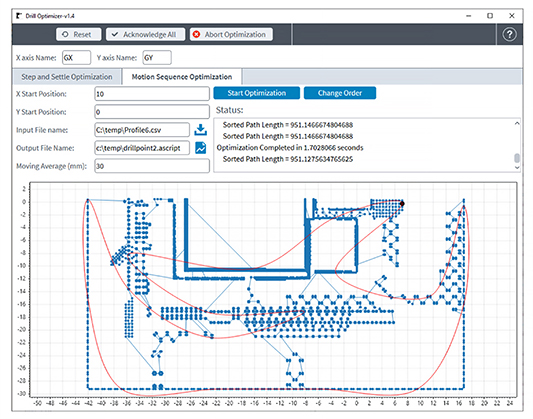

– Optimisation of motion sequences: DrillOptimizer calculates the shortest path through the entire drilling pattern – within a single field of view (FOV) or in combination with a servo table system for an infinite field of view (IFOV). This saves travel time and increases the overall throughput.

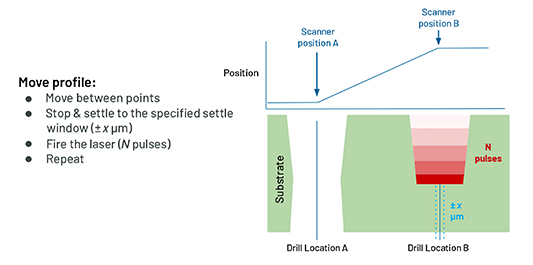

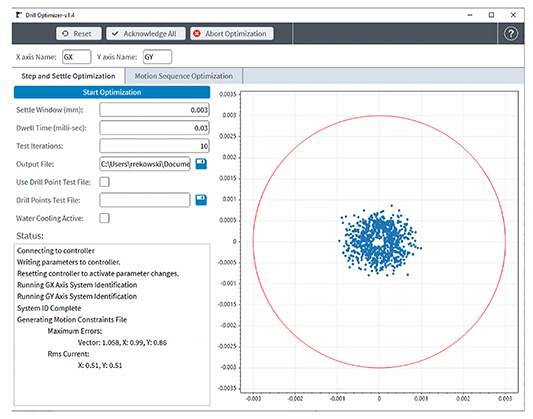

– Optimisation of steps and settling: Individually suitable control parameters are determined for each specific step distance – without the galvo scanner leaving the predefined settling window. As soon as the scanner is in the so-called settling window, the laser can be triggered without delay. This eliminates unnecessary downtimes between drillings.
Technical advantages at a glance:
– Shorter cycle times thanks to intelligent path and movement optimisation
– Maximum utilisation of galvo hardware performance with consistent precision
– No delay in laser triggering thanks to dynamic parameter adjustment
– Support for large quantities with minimal setup effort
– User-friendly integration via Automation1 Studio or .NET DLL
– Compatibility with the AGV-HPO and AGV-XPO galvo heads from Aerotech
Partner for demanding laser processes
DrillOptimizer is aimed at equipment manufacturers who realise laser drilling processes with maximum efficiency and precision – for example in PCB production, micro material processing or semiconductor technology.
Aerotech has been developing high-precision motion control systems for applications in laser material processing, medical technology, semiconductor manufacturing and other high-tech industries for over 50 years. Headquartered in Pittsburgh, USA, the company has its own branch in Fürth and is recognised worldwide as a specialist for sophisticated motion control applications.
