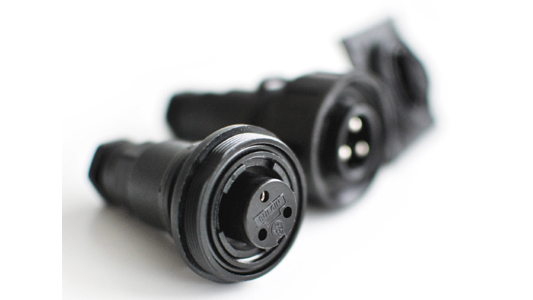

Available from stock though Powell Electronics, the supplier of connectors and more for high-rel applications including defence, aerospace and industrial, are several popular environmentally sealed circular power connector series from Bulgin’s Buccaneer range.
The Standard Buccaneer range is a range of waterproof connectors. IP68 and IP69K rated, these power connectors are ideally suited for a wide range of markets such as Industrial, Automotive and Marine. The Mini Buccaneer product range guarantees reliable power connections with up to 250 V or 10 A. The models in the Mini-Buccaneer series benefit from secure screw locks and IP68 protection and have already proven themselves in numerous demanding marine and industrial applications.
High-power 900 Series Buccaneer connectors are capable of up to 32A, 600V ac/dc ratings. Sealed up to IP68 and IP69K, the 900 Series features a secure screw thread lock to ensure robust high voltage connections. Carrying UL, CSA & VDE approvals, these devices are well suited for harsh environment applications requiring dust and waterproof connections for single or three phase power distribution.
Further technical details of the Standard Buccaneer range include a 2, 3, 4, 6, 7, 9, 12 and 25 contact design, seven available body styles (flex cable, inline cable, panel mount (front), panel mount (rear), PCB mount, bulkhead and flange mount), positive locating keyways prevent mis-mating. Mini Buccaneer components benefit from versatile contact options (2, 3, 4, or 6-contact screw terminal inserts and 3 or 8-contact solder/crimp inserts), multiple body styles (flex, inline, panel (two styles), panel side entry options), positive locating keyways preventing mis-mating and a wide range of cable acceptance from 3.5 up to 9mm. High-power 900 Series Buccaneer connectors feature a 2, 3, 4, 5, 7 and 10 contact design, ‘scoop proof’ contacts, a cable acceptance from 7mm up to 22mm and positive locating keyways preventing mis-mating.
