Shenzhen, China – MYIR has launched the MYC-LR3568, a cost-effective System-on-Module (SoM) that is powered by the high-performance, low-power quad-core ARM Cortex-A55 processor RK3568 from Rockchip. This SoC boasts robust Mali-G52 2EE GPU capabilities and supports up to 1 TOPs NPU. It also supports various video codecs, including 4K 60fps H.265/H.264/VP9 decoding and 1080P 60fps H.265/H.264 encoding, guaranteeing high-quality video playback and recording for users.

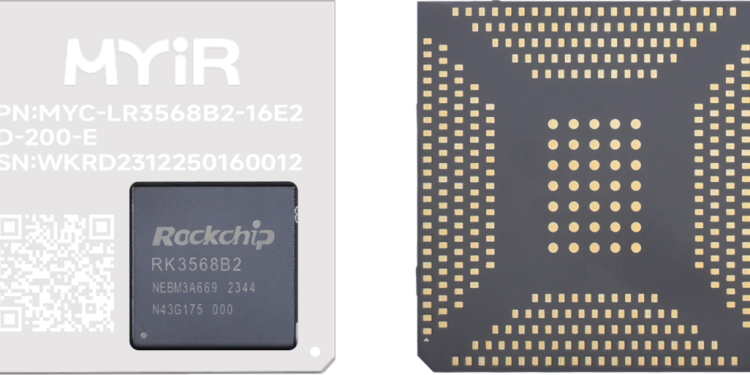

The MYC-LR3568 SOM features a compact 381-pin LGA package design, with dimensions of 43mm x 45mm. It integrates core components such as RK3568J/RK3568B2 processor, 2GB of LPDDR4 memory, 16GB of eMMC storage, EEPROM and PMIC. Additionally, it provides flexibility by allowing customization of optional eMMC capacities of 8GB/32GB and optional memory sizes of 1GB/4GB/8GB. The MYC-LR3568 is compatible with Linux and Debian Operating Systems and caters to a diverse array of applications, such as IoT gateways, NVR storage, industrial control, HMI, cloud terminals, central vehicle controllers, and facial recognition systems.
MYIR provides the MYD-LR3568 Development Board for prototyping and evaluating purposes, tailored specifically for development based on Rockchip RK3568 solutions. It has a carrier board design built around the MYC-LR3568 System-On-Module, enabling users to explore the diverse features of the RK3568 processor. The board comes with an extensive range of peripherals and interfaces, including two USB3.0, one USB2.0, two Gigabit Ethernet, two CAN interfaces, a WiFi/Bluetooth module, a Micro SD card slot, an Audio interface and a Mini-CSI interface. Moreover, it supports multiple display interfaces sucha as HDMI, Mini-DP, MIPI-DSI, and LVDS.
To further enhance its extensibility, the MYD-LR3568 development board features a 40-pin RPI-compatible expansion interface as well as a MiFAN custom 40-pin expansion interface. Additionally, MYIR offers optional modules to enrich the board’s functionalities, including MY-CAM004M 4ADH-to-MIPI Camera Module, MY-CAM005M MIPI Camera Module, MY-WIREDCOM RPI Module (RS232/RS485/CAN) and MY-LVDS070C LCD Module.
![](https://electronicsera.in/wp-content/uploads/2024/07/3-6.jpg)
![](https://electronicsera.in/wp-content/uploads/2024/07/4-2.png)
![](https://electronicsera.in/wp-content/uploads/2024/07/5.png)
Part No. | CPU | LPDDR4 | eMMC | Working Temp. | Unit Price |
MYC-LR3568J-16E2D-180-I-G | RK3568J | 2GB | 16GB | -40~85 Celsius | $65 |
MYC-LR3568B2-16E2D-200-E | RK3568B2 | 2GB | 16GB | -20~70 Celsius | $43 |
MYIR offers two standard configurations for the MYC-LR3568 SOM, tailored to fulfill the diverse requirements of our customers. These modules are competitively priced, and we furthermore extend discounts for bulk orders.
More information about the MYC-LR3568 SOM can be found at:
