Crouzet CTR24 Counters

By : Transfer Multisort Elektronik Sp. z o.o.

Editorial by Editorial
June 3, 2022
in Tech Article
Reading Time: 2 mins read
CROUZET
Share on FacebookShare on Twitter

The CTR24 series is designed for industrial counting applications. The user has two types of inputs to choose from: models with solid-state input (4…30 V DC, PNP, or NPN) and voltage input (10…260 V AC). The maximum count frequency is up to 30 Hz for the voltage input version, 7 kHz for NPN and 12 kHz for PNP, respectively.

CROUZET-87622070_0002

NPN Input

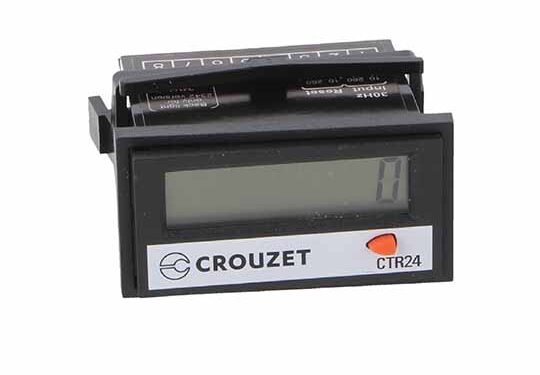

CROUZET-87622070_0008

PNP Input


CROUZET-87622070_0005

Voltage input

The counters are equipped with a large, easy-to-read and backlit LCD display at the front of the module. Measurement range is up to 99999999 (also below zero). The device is mounted in a hole (panel cut out dimensions are 45 mm x 22.2 mm) The counter depth is 50.7 mm; plug-in screw terminal connection allows easy installation even in difficult to access areas. The wide operating temperature of Crouzet products is another advantage; they can withstand temperatures from -10°C to 60°C. The counters have a high ingress protection rating (IP65), i.e. they are splash and dust resistant.

Browse our catalogue for detailed product specifications.

 Features
Counter:electronic
Type:reversed/progressive
Number of inputs:2
Mounting:Panel mounting
Power supply:Internal battery
Operating temperature:-10…60°C
IP rating:IP65
Source: Transfer Multisort Elektronik Sp. z o.o.
Tags: CTR24 series
