FR-series Rotary Encoder Switches by NKK Switches

By : Transfer Multisort Elektronik Sp. z o.o.

Editorial by Editorial
June 4, 2022
in Tech Article
Reading Time: 2 mins read

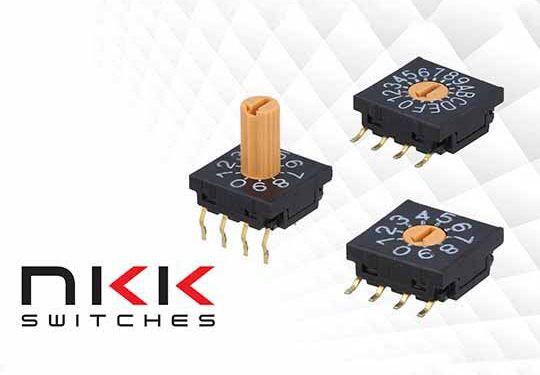

FR02FR10P
Share on FacebookShare on Twitter

NKK Switches is a world-renowned Japanese manufacturer specialising in HMI products (Human-Machine Interface), such as electromechanical switches.

TME offers FR-series rotary encoder switches by NKK Switches. These are 10- and 16-position components which provide the pre-set value in the form of a binary code. Depending on the product, two mounting options are available: THT (through-hole mounting) and SMT (surface mounting). Encoders feature a 10x10mm base. They can operate within the temperature range of -25°C to 85°C, and their mechanical and electrical durability is 10000 switching cycles.

FR01KR10P-S

10-position THT encoders

FR01KC16P-S

16-position THT encoders

FR02FR10P-S

10-position SMT encoders

FR02FR16P-S

16-position SMT encoders

Encoders by NKK Switches can be applied in electronic circuits as components responsible for setting various parameters, mainly in initial settings of sensors, industrial devices, etc.

Learn more about our selection of NKK Switches encoders available at TME.

 Specification
Switch type:encoder
No. of stable positions*:10 or 16
Mounting:THT or SMT
DC contact load capacity:0.1A / 5V DC
Insulation resistance:1000MΩ
Max. contact resistance:100mΩ
Operating temperature:-25…85°C
Body dimensions:10x10x4mm

* depending on the selected model

Source: Transfer Multisort Elektronik Sp. z o.o.
