In today’s electronics manufacturing landscape, precision and reliability are critical. The cleaning of stencils, screens, PumpPrints and misprints is a vital but often underestimated step.
A poorly cleaned stencil can compromise solder paste deposition, leading to defects, rework, or even product failure. kolb Cleaning Technology´s PSE 300 series offers efficiency in every aspect: costs, cleaning results and sustainability.
Overview:

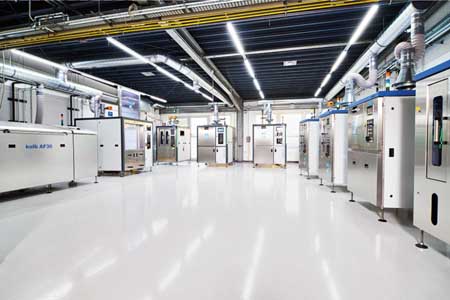

This German-engineered range of compact cleaning systems offers options tailored for both small enterprises and high-throughput production lines.
Starting with the entry-level PSE 300 HD to the large-format PSE 300 2VL-XL, it offers a solution for every cleaning task and budget.
PSE300 HD
Extremely compact cleaning system for screens, stencils, squeegees and spatulas.
Capacity: Screen, stencil, carrier, washing frame up to 770 x 850 mm (30″ x 33″)
Footprint: 800 mm x 1200 mm (31.50″ x 47.24″)
• Mono-tank compact system with two tank function
• Comfortable push-one-button-operation
• Fully automatically looped 2step process: cleaning/rinsing and drying with HotSpeed warm air unit
• Water free process: no water connection, no waste water disposal necessary
• Cycle time: < 30 min, depending on contamination and detergent
• Permanent filtration
• ClosedLoop reprocessing of cleaning/rinsing fluid
PSE300 VS
Fully automatic cleaning system for screens, stencils, solder carriers and misprints
Capacity: Screen, stencil, carrier, washing frame up to 950 x 780mm (37.5″ x 31″)
Footprint: 800 mm x 1200 mm (31.50″ x 47.24″)
• Mono-tank compact system with two tank function
• Comfortable push-one-button-operation
• Fully automatic 2-step process: cleaning/rinsing, drying with CWA® compression drying.
• Waterless/Independent, no water/waste water connection necessary
• Process sections made of electrolysis and high temperature resistant elements
PSE300 VL
Extremely compact cleaning system for screens, stencils, squeegees and spatulas with very short cycle times (< 10 min.)
Capacity: Screen, stencil, carrier, washing frame up to 770 x 950 mm (30″ x 37″)
Footprint: 800 mm x 1200 mm (31.50″ x 47.24″)
• Mono-tank compact system with two tank function
• Comfortable push-one-button-operation
• Fully automatically looped 3step process: cleaning/rinsing, MediumWipe®, CWA® drying
• Water free process: no water connection, no waste water disposal necessary
• Magnetic coupled XPower pumping unit
• Permanent filtration
• ClosedLoop reprocessing of cleaning/rinsing fluid as standard feature
PSE300 2VL
Fully automatic cleaning system for screens, stencils, PumpPrints and other flat products.
Capacity: 21 eurocards or one coating carrier, screen, stencil, (PCB-) carrier/ washing frame up to 770 x 950 mm (30″ x 37″)
Footprint: 950 mm x 1600 mm (37.40″ x 62.99″)
• Two tank system with two separate circuits
• Comfortable push-one-button-operation
• Fully automatic 4step process: cleaning, MediumWipe®, rinsing (tap water), CWA® supercharger compression drying
• Short cycle times
• Permanent filtration
• ClosedLoop reprocessing of cleaning and rinsing fluids as standard feature
• Water-free operation possible: Instead of water the system can use a suitable cleaning/rinsing detergent for rinsing
PSE300 2VL-XL
Fully automatic cleaning system with two circuits for extra large stencils or two regular ones.
Capacity: Stencils, screens up to 770 x 1,560 mm (30″ x 61″)
Footprint: 950 mm x 2200 mm (37.40″ x 86.61″)
• Two tank system with two separate circuits
• Comfortable push-one-button-operation

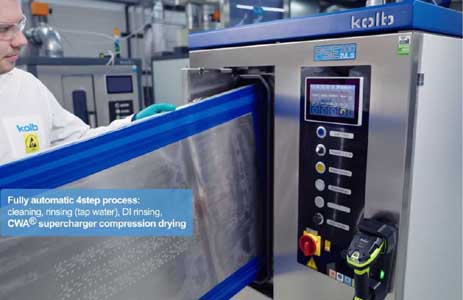

• Fully automatic 4step process: cleaning, rinsing (tap water), DI rinsing, CWA® supercharger compression drying
• Short cycle times
• Permanent filtration
• ClosedLoop reprocessing of cleaning and rinsing fluids as standard feature
• Water-free operation possible: Instead of water the system can use a suitable cleaning/rinsing detergent for rinsing
