ELECTRO-PJP is a manufacturer specializing in measurement accessories. We have recently enriched our assortment with over a thousand articles from this supplier – these are primarily high-class solutions for professionals.
Below we present an overview of the new offer from ELECTRO-PJP. It includes cables with varied parameters, as well as accessories such as probes, crocodile clips, and even hangers for storing measurement cables. This assortment is made in accordance with international standards to meet the expectations of professionals. It is a diverse selection of products where optimal solutions can be found by electricians, technicians dealing with power networks, as well as electronics, mechanics, or DIY enthusiasts.

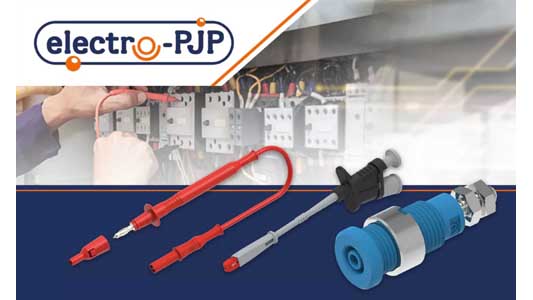

Measurement accessories ELECTRO-PJP
In this article, we cover topics such as:
- Measurement cables for professional applications
- Banana connectors for making measurement equipment
- Probes, clips, and grabbers with high safety class
Measurement Cables
The largest group of products in the ELECTRO-PJP offer are measurement cables available in lengths from 0.1m to 2m. They are made of wires with cross-sections from 0.4mm2 to 2.5mm2. Their rated current reaches up to 40A (selected models). The vast majority of products have factory pre-installed banana connectors (4mm, less often 2mm), including an axial socket placed in the body and an additional insulating flange. There are also versions integrated with probes and crocodile grabbers.
Tolerance ≥ 36A Silicone Insulation CAT 0 5000V Cables With Crocodile Clips
It should be emphasized that ELECTRO-PJP solutions comply with standards CAT II 600…1500V, CAT III 1000…1500V, CAT IV 1000V, and CAT 0 5000V. They can be purchased in various color versions, facilitating identification during complex measurements. It is worth noting that many of these articles have insulation made of silicone, which is characterized by high flexibility and resistance to a wide range of temperatures (from -60°C to 180°C). ELECTRO-PJP’s offer also includes laboratory adapters for making connections between cables and sockets with banana connectors 2mm and 4mm.
Laboratory Adapters Cable Sets Sets with Accessories
For quick equipment replenishment, TME customers can purchase cable sets and accessory kits. These include accessories specialized for performing Kelvin measurements (four-point resistance measurement), cables with interchangeable probes or grabbers.
Banana Sockets and Plugs
The second numerous group of ELECTRO-PJP products is 2/4mm banana sockets and plugs, which are connectors intended for making laboratory devices and accessories. Among the sockets, there are primarily typical products for panel mounting, i.e., placed in a threaded body mounted by a nut. Alternatively, they can be mounted in a press-fit hole (festoon) and are available in versions for PCB mounting. Electrical connection is made by soldering, using connectors or screw terminals. These types of connectors are used not only in measurements but also for creating temporary power, grounding, etc., connections. Their high current parameters (resistance to current up to 36A) allow this. Their brass contacts are nickel-plated to ensure corrosion resistance and maintain the lowest possible resistance.
4mm Sockets 2mm Sockets 4mm Plugs 2mm Plugs
ELECTRO-PJP plugs are characterized by similarly high electrical parameters. They come in several formats, including with built-in connectors for creating series connections and insulating flanges that further protect the user from touching the contact. The design of the plugs provides for easy and durable mounting on cables with a cross-section typical for measurement applications.
Other Accessories
ELECTRO-PJP provides a wide range of other basic measurement accessories. The most important include measurement probes and wire grabbers connected via banana connectors. This is professional-grade equipment, fully enclosed with insulation, suitable for working with both electrical installations and precision electronics. Some models are made for soldered mounting to create cabling according to individual needs.
Measurement Tips Measurement Grabbers Crocodile Clips
Crocodile clips in the TME assortment come in many variants: from typical metal elements to models surrounded by a plastic body to protect the operator and prevent accidental short circuits. They are available in different color versions and sizes (with a gripping range from 9mm to 40mm), including compliant with CAT II 1500VDC standard.
A noteworthy addition to the accessory offer is cable hangers. They come in two formats. The first is cage spools intended for winding long cables (max. 20m or 50m). The second type is containers with slots of different sizes on the sides for hanging cables. Such a hanger can hold 100 or even 200 cables (and other accessories inside the tray). The container is placed on a telescopic stand, whose base is equipped with wheels. This solution will be particularly useful for organizing equipment in laboratories, workshops, and service stations, where many different types of measurement cables are used.
Hanger placed on a telescopic stand equipped with wheels.
