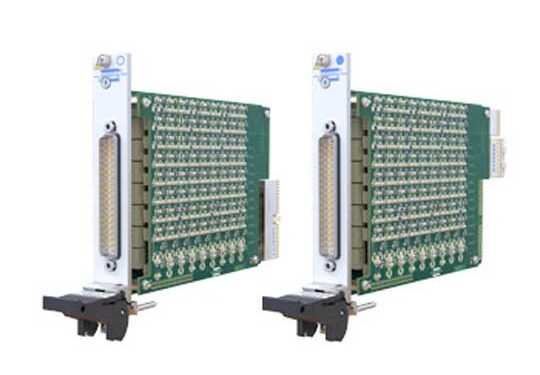

Pickering Interfaces, the leading supplier of modular signal switching and simulation solutions for use in electronic test and verification, has added new models to its high-density precision resistor module family, improving sensor simulation accuracy. The updated 40-297A (PXI) and the new 42-297A (PXIe) modules are now available with additional resolutions – 0.125Ω, 0.25 Ω, 0.5Ω, 1Ω, 2Ω, 4Ω and 8Ω – extending the resistance range to 85.3MΩ on a single 6-channel module. The setting accuracy is now +/-0.1% +/-resolution (was +/-0.2% +/-resolution). These additional models allow our simulation products to address even more applications than before.
Comments Paul Bovingdon, Simulation Product Manager at Pickering Interfaces: “The new modules provide a simple, accurate solution for functional test systems in applications such as engine-controller testing where resistive sensors (thermistors / RTD) provide information such as temperature and altitude. We believe that these new models will find acceptance in areas such as satellites, aerospace and defense projects. As we have added more choices, the Product Selector on our website is there to help choose the right model for your application and even compare specifications of multiple models.”
The 4x-297A’s channels can be set as short or open circuit to simulate a wiring or sensor fault and up to 18 channels can fit into a single-slot module. The use of resistor value calls simplifies software control. The module works out the channel setting closest to the requested value and sets that value. The user can interrogate the module to find the actual resistance setting used by the module.
A calibration cable can be attached to the module allowing a DMM to be used to verify each channel. This considerably simplifies the checking of the module’s calibration. Verification is performed with the UUT disconnected from the module. VISA and Kernel drivers for Windows, a universal driver for Linux and support for other Real-time systems such as QNX and LabVIEW RT are supplied. Like all Pickering modules, these carry a three-year warranty.
