Fairport, NY – Saelig Company, Inc. has introduced the RIGOL MHO2000 series – the new generation of four-channel high-resolution, mixed signal digital oscilloscopes based on the Centaurus platform. It offers 12-bit resolution (up to 16-bit in high-res mode), bandwidths up to 350 MHz, 4 analog channels, and 16 digital channels for debugging with an optional probe.

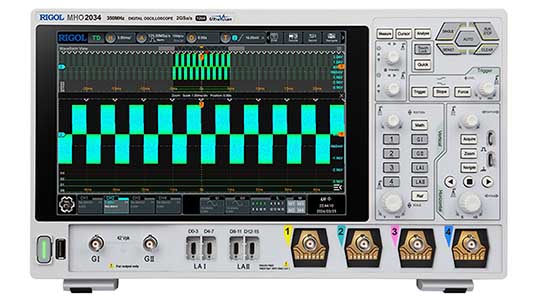

The 200MHz MHO2024 and the 350MHz MHO2034 oscilloscopes are designed with 2GSa/s sampling rate all channels at 12-bit vertical resolution, with a waveform capture rate of up to 1,000,000 wfms/s. Internal memory of up to 500 Mpts allows for drilling down to fine details in waveform captures. An integrated 2-channel 50MHz AWG is also optionally available.
Automatic measurements for up to 41 parameters, statistics, XY cursors, Pass/Fail function with hardware mask, plus a 6-digit frequency counter and an integrated DVM are all features of the MHO2000 series. Advanced software options include: Power analysis, Automotive bus trigger/decoding (CAN-FD, LIN), Avionics bus trigger/decoding (MIL-STD-1553), FlexRay trigger/decoding, and Audio bus trigger/decoding (I2S).
Features
- 12-bit vertical resolution (up to 16-bit in high-res mode)
- Bandwidth: 200 MHz (MHO2024), 350 MHz (MHO2034)
- 4 analog channels + 1 EXT, 16 digital channels (with optional probe)
- Sampling rate: up to 2 GSa/s
- Arbitrary waveform generators (2x 50 MHz, optional)
- Power analysis (optional), histogram, Bode plot, protocol decoding
- 10.1” touch screen 1280×800 pixel
- 256-level digital intensity display, digital fluorescence technology
- Up to 1,000,000 wfms/s in fast recording mode
- Connectivity: USB Host/Device, LAN, HDMI
The MHO2000 digital oscilloscope series is designed to meet advanced design, debugging, and test demands at an attractive price. These oscilloscopes are available now from Saelig Company, Inc., Rigol’s USA technical distributor. For detailed specifications, free technical assistance, or additional information, please contact Saelig at 1-888-7SAELIG, via email: info@saelig.com, or by visiting https://www.saelig.com.
