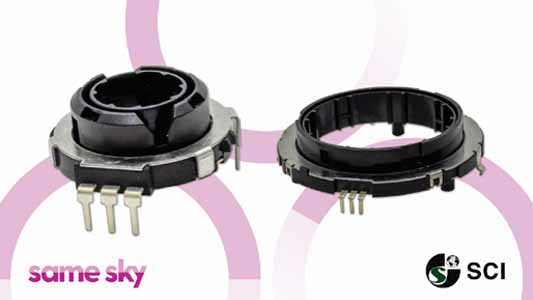

Same Sky’s Motion and Control Group today announced the addition of hollow shaft ring encoders to its line of panel mount incremental encoders. The RING family of hollow shaft mechanical encoders is housed in packages from 23 mm up to 56.5 mm with low profile designs from 9.5 mm up to 20 mm. Offering hollow shaft diameters from 9 mm up to 38.5 mm and shaft lengths from 5 mm up to 15.5 mm, these ring encoders are ideal for a range of applications, including industrial and commercial equipment, home appliances, and more.
These hollow shaft ring encoders feature 5 Vdc input voltages, 1 to 10 mA current consumption, single-ended quadrature outputs, and resolutions from 10 to 20 PPR. The models further carry operating temperature ranges from -30 to 80°C, haptic detent feedback, and rotational life cycle ratings of 30,000.
Key Features:
- Hollow Shaft Ring Encoders
- Housed in packages from 23 mm up to 56.5 mm
- Low profile designs from 9.5 mm up to 20 mm
- Hollow shaft diameters from 9 mm up to 38.5 mm
- Shaft lengths from 5 mm up to 15.5 mm
- 5 Vdc input voltages
- 1 to 10 mA current consumption
- Single-ended quadrature outputs
- 10 to 20 PPR resolutions
- Haptic detent feedback
